Protein-specific HN(CA)CO experiment (Figure 7.41 of "Protein NMR Spectroscopy", 2nd edition) using pre-set values of J-couplings used in the magnetisation transfer stages. The simulation uses the bidirectional propagation method described in (http://dx.doi.org/10.1016/j.jmr.2014.04.002).
Syntax
fid=hncaco(spin_system,parameters,H,R,K)
Arguments
parameters.npoints - a vector of three integers giving the
number of points in the three temporal
dimensions, ordered as [t1 t2 t3].
parameters.sweep - a vector of three real numbers giving
the sweep widths in the three frequen-
cy dimensions, ordered as [f1 f2 f3].
parameters.J_nh - 1H-15N J-coupling in Hz to be used for
magnetisation transfer.
parameters.T - evolution delay in the indirect 15N
dimension, in seconds.
parameters.delta2 - coherence transfer delay in seconds.
H - Hamiltonian matrix, received from context function
R - relaxation superoperator, received from context function
K - kinetics superoperator, received from context function
Outputs
fid - three-dimensional free induction decay
Note: spin labels must be set to PDB atom IDs ('CA', 'HA', etc.) in
sys.labels for this sequence to work properly.
TODO: whoever understands how phase cycles and quadratures work in
3D NMR is welcome to add a phase-sensitive version.
m.walker@soton.ac.uk ilya.kuprov@weizmann.ac.il
Examples

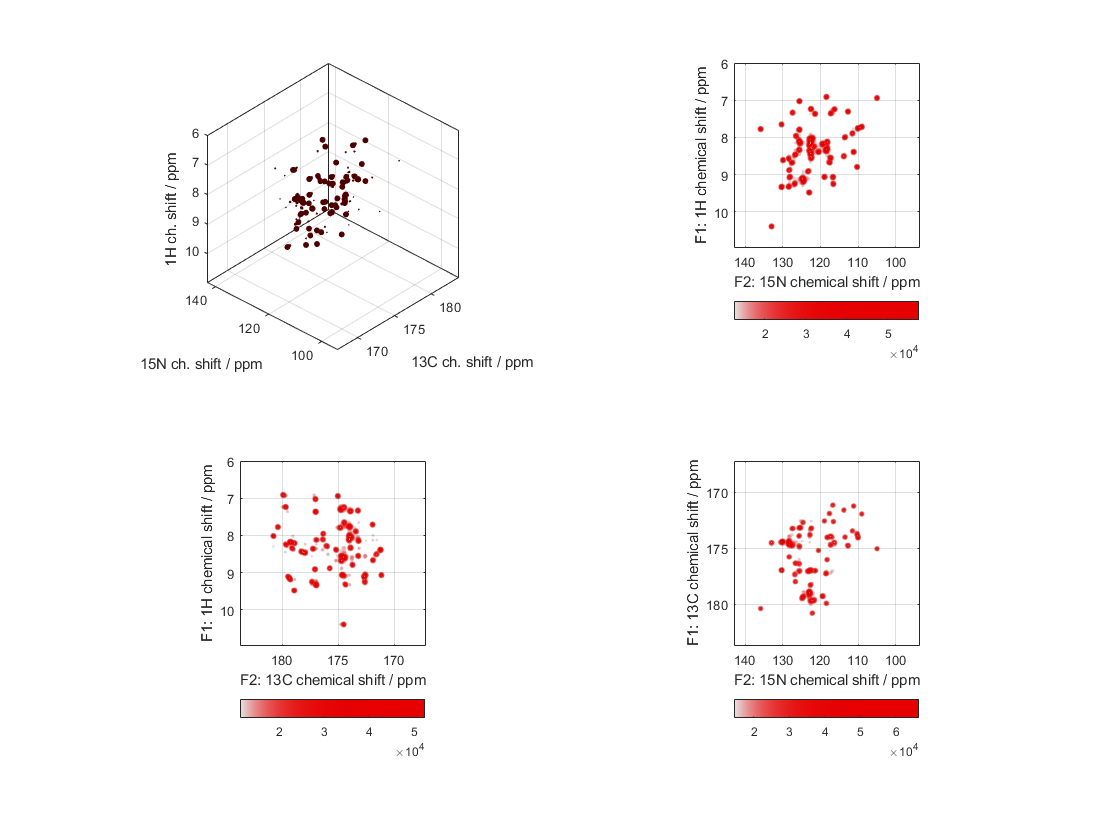

Below is the output (3D spectrum and three projections) of the HN(CA)CO pulse sequence for the GB1 protein (examples/nmr_proteins/hncano_gb1.m).
Notes
- The sequence is hard-wired to work on 1H,13C,15N proteins and uses PDB labels to select spins that will be affected by otherwise ideal pulses.
- Channels: F1 is 15N, F2 is 13C, F3 is 1H.
- Spin labels must be set to PDB atom IDs ('CA', 'HA', etc.) in sys.labels for this sequence to work properly
See also
Version 2.5, authors: Matt Walker, Ilya Kuprov
