Phase-sensitive double-quantum filtered COSY pulse sequence.
Syntax
fid=dqf_cosy(spin_system,parameters,H,R,K)
Parameters
parameters.sweep sweep width in Hz
parameters.npoints number of points for both dimensions
parameters.spins nuclei on which the sequence runs,
specified as {'1H'}, {'13C'}, etc.
H - Hamiltonian matrix, received from context function
R - relaxation superoperator, received from context function
K - kinetics superoperator, received from context function
Outputs
fid.cos, fid.sin - components of the free induction
decay for hypercomplex processing
Examples

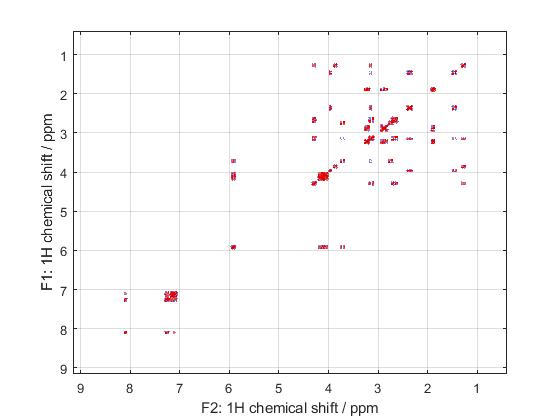

A DQF-COSY spectrum of strychnine (examples/nmr_liquids/dqf_cosy_strychnine.m) appears below.
Notes
The double-quantum filter is implemented as an exact analytical coherence-order projection, not as an explicit phase cycle or finite-gradient selection block.
See also
noesy.m, hsqc.m, hmqc.m, hnco.m, hncoca.m, tocsy.m, roesy.m, clip_hsqc.m, coloc.m, cosy.m, crazed.m, ct_cosy.m, ct_hsqc.m, dept.m, deptq.m, ecosy.m, hetcor.m, hmbc.m, hoesy.m, inadequate.m, inadequate_2d.m, inept.m, inv_rec.m, mqs.m, mqs_refocus.m, pansy_cosy.m, pansy_triple.m, sat_rec.m, Built-in_experiments
Version 2.3, authors: Ilya Kuprov, Luke Edwards
