Solid effect DNP experiment, computed using the large-scale formalism described in (http://dx.doi.org/10.1039/C2CP23233B). The system is restricted to one electron and one nucleus type, but the number of nuclei may be very large.

Syntax

    answer=solid_effect(spin_system,parameters)

Arguments

          parameters.mw_pwr   - microwave power in rad/s

          parameters.theory   - level of theory. Set to 'exact' for
                                the electron rotating frame calcula-
                                tion or to any of the following six
                                options for the average Hamiltonian
                                theory calculation on top of the el-
                                ectron + nuclear rotating frame:
                                'ah_first_order', 'ah_second_order',
                                'ah_third_order', 'kb_first_order',
                                'kb_second_order', 'kb_third_order'.
                                See average.m function for the mea-
                                ning of these options.

     parameters.nuclear_frq   - nuclear Zeeman frequency in rad/s

       parameters.calc_type   - set to 'time_dependence' to get the
                                time dependence of the longitudinal
                                magnetization and to 'steady_state'
                                to get the asymptotic longitudinal
                                magnetization.

       parameters.time_step   - if 'time_dependence' is set in the
                                calc_type parameter, sets the time
                                step, seconds.

         parameters.n_steps   - if 'time_dependence' is set in the
                                calc_type parameter, sets the num-
                                ber of time steps.

Outputs

     answer  -  with the 'time_dependence' calculation type, the
                function returns the observables detected using
                the coil states specified at each point in time;
                with the 'steady_state' option specified, the
                function returns the steady state values detec-
                ted using the coil states specified.

Examples

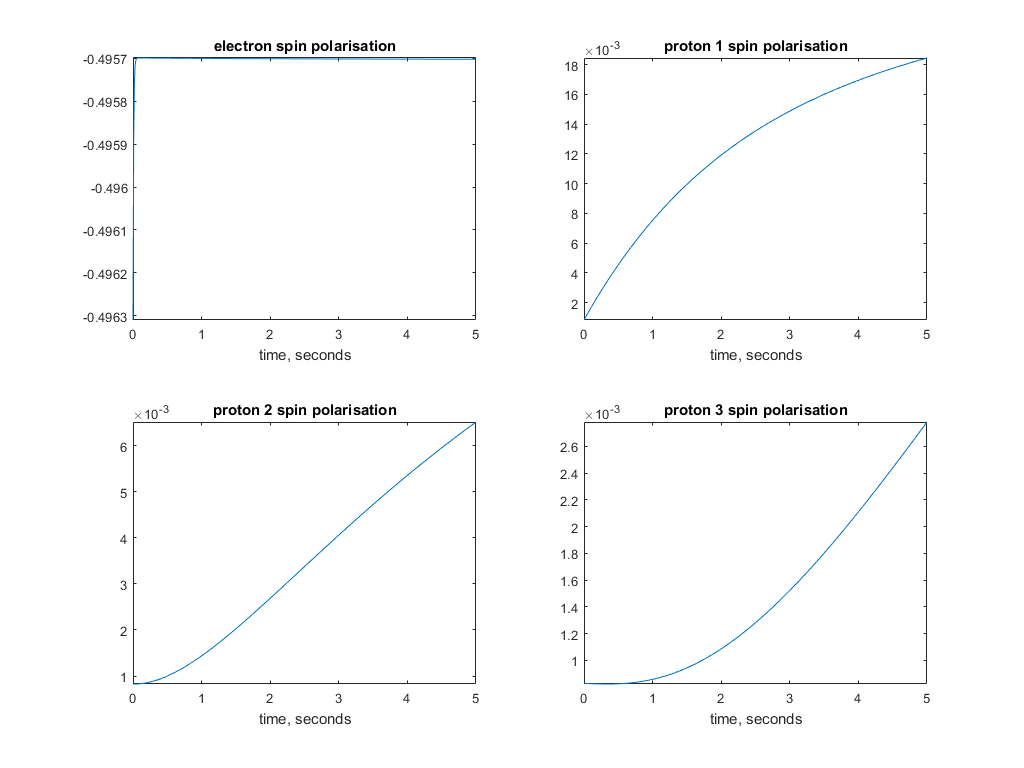

The following figure is returned by examples/dnp_solids/solid_effect_timedep_1.m function:

Dnp example 4.png

Notes

  1. This function generates its own Liouvillian and should be called directly, without a context wrapper.

See also

DNP experiments


Version 2.5, authors: Ilya Kuprov, Walter Kockenberger, Alexander Karabanov
